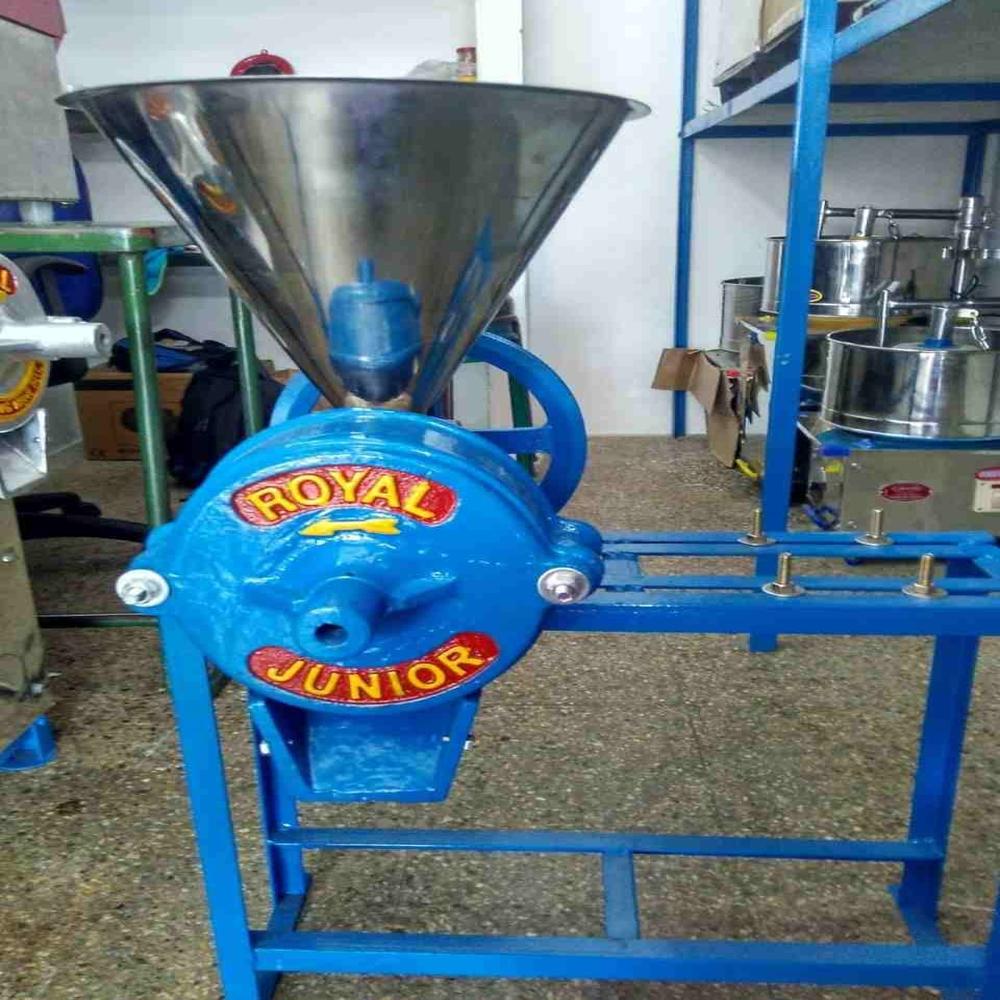

INSTANT WET GRINDER ROYAL JUNIOR

1. Introduction and Comprehensive Product Overview

The Royal Junior Cone Model Instant Wet Grinder represents a paradigm shift in commercial and semi-commercial food preparation technology. Engineered to bridge the gap between heavy-duty industrial grinders and compact domestic appliances, this machine is a powerhouse designed for high-efficiency, continuous wet grinding.

At its core, the Royal Junior Cone Model is designed to handle the rigorous demands of modern commercial kitchens, catering businesses, restaurants, and busy households that refuse to compromise on the texture and quality of their batters, pastes, and purees. Traditional wet grinders often rely on heavy, cylindrical granite stones that rotate slowly inside a drum. While this time-honored method yields excellent results, it is notoriously slow, bulky, and difficult to clean. The "Instant" aspect of the Royal Junior completely redefines this workflow. Instead of grinding a single batch of ingredients over 30 to 45 minutes, this machine utilizes a high-speed, precision-engineered conical mechanism that processes ingredients instantly as they pass through the chamber.

The "Cone Model" designation refers to the unique geometry of its internal grinding elements. Unlike flat or cylindrical stones, a conical configuration maximizes the surface area of engagement while leveraging centrifugal force to move material smoothly through the grinding zone. This reduces friction-induced heat, protects the nutritional profile of the food, and prevents the stalling or clogging common in lesser machines.

Whether you are preparing massive quantities of rice and urad dal batter for idlis and dosas, grinding tough coconut for chutneys, or processing spices into ultra-fine pastes, the Royal Junior delivers an uncompromised, velvety texture in a single pass. It stands as a testament to intelligent mechanical engineering, combining robust materials, operator safety, and exceptional throughput into a remarkably compact footprint.

2. Advanced Technical Specifications and Mechanical Architecture

Beneath its sleek exterior, the Royal Junior Cone Model boasts an industrial-grade mechanical architecture built for longevity and unrelenting performance. Every component, from the motor windings to the specific alloy of the grinding cone, is selected to withstand the corrosive and abrasive environments typical of commercial food processing.

Power and Motor Dynamics

The machine is driven by a high-torque, heavy-duty induction motor specifically calibrated for continuous operation.

• Motor Capacity: 1.0 HP to 1.5 HP (depending on the specific sub-variant configuration), operating on standard single-phase AC power .

• Winding Material: 100% pure electrolytic copper wire. Copper windings ensure superior thermal conductivity and lower electrical resistance compared to aluminum alternatives, drastically reducing energy waste and preventing mid-operation burnouts.

• Insulation Class: Class F insulation rating, allowing the motor to safely withstand internal temperatures up to 155C without degrading, which is critical during multi-hour commercial shifts.

Grinding Mechanism and Material Science

The magic of the "Instant" architecture lies entirely within the conical grinding assembly.

• The Cone Assembly: The grinder features a pair of perfectly matched conical elementsa stationary outer ring (stator) and a rapidly rotating inner cone (rotor). These are fabricated from premium, food-grade synthetic abrasive stone compounds or high-density carborundum, depending on the exact material configuration ordered.

• The Clearance Precision: The clearance between the rotor and stator is adjustable down to microscopic levels, allowing users to fine-tune the output from a coarse crush to an ultra-smooth micro-particle slurry.

• Shaft and Bearings: The main drive shaft is machined from high-tensile AISI 304 stainless steel to eliminate any risk of rusting or snapping under load. It is supported by double-shielded, permanently lubricated ball bearings that absorb both radial and axial thrust, ensuring whisper-quiet operation and zero shaft play over years of use.

3. The Conical Grinding Innovation and Operational Mechanics

To truly appreciate the Royal Junior Cone Model, one must understand the fluid dynamics and mechanical forces at play within its unique conical grinding chamber. Traditional wet grinders use gravity and the sheer weight of rolling stones to crush food grains against a rotating base plate. This process requires the ingredients to be submerged in water and cycled repeatedly for extended periods, leading to heat buildup and starch degradation.

The Cone Model turns this principle on its head through Progressive Compression and Shear Force. As raw ingredients (such as soaked rice and lentils) are fed into the top of the hopper, they enter the widest part of the cone. As the internal rotor spins, centrifugal force flings the ingredients outward into the tapering gap between the rotor and stator.

Step-by-Step Breakdown of the Instant Grinding Cycle:

1. Stage 1: Coarse Crushing (The Upper Cone): The ingredients are instantly fractured by the wider, coarser grooves at the top of the cone assembly.

2. Stage 2: Progressive Shearing (The Mid-Cone): As gravity and centrifugal force push the material downward, the gap narrows. Here, the grains are subjected to intense hydraulic shear forces as water and solids are mashed together at high velocity.

3. Stage 3: Micro-Refinement (The Base of the Cone): At the absolute exit point of the cone, the clearance is at its minimum. The material is subjected to a final, intensive milling action that reduces particle sizes down to less than 50 microns.

4. Stage 4: Continuous Discharge: The completely refined, aerated batter is instantly ejected through the discharge chute into a waiting collection vessel.

Because the entire process takes mere seconds per handful of raw material, the ingredients spend almost no time inside the grinding chamber. This yields a massive operational advantage: zero heat transfer. In traditional grinders, the friction of stones running for 40 minutes heats the batter, which can cause premature fermentation of sensitive wild yeasts in urad dal, resulting in sour, flat, or dense idlis. The Royal Junior keeps the batter perfectly cool, preserving the natural enzymes and starches, which leads to incredibly fluffy, light, and perfectly risen end products.

4. Unrivaled Performance Efficiency and Throughput

When it comes to commercial food preparation, time is currency. The Royal Junior Cone Model is engineered specifically to optimize throughput and slash operational timelines, turning what used to be a half-day chore into a rapid, streamlined task.

Processing Speeds and Output Capacity

The standout metric of the Royal Junior is its incredible speed. While a standard 2-liter tilting or tabletop wet grinder requires roughly 30 to 40 minutes to process a single batch of rice batter, the Royal Junior works on a continuous-flow principle.

• Output Rate: Depending on the moisture content and the desired fineness, this machine can output between 15 to 25 kilograms of perfectly texturized batter per hour.

• No Batch Restraints: There is no "batch size" limitation. As long as you continue to feed soaked grains and water into the hopper, the machine will continuously pour out finished batter from the chute. This makes it an invaluable asset during peak breakfast rushes or large-scale catering events where demand can spike unpredictably.

Resource and Utility Efficiency

Efficiency is not just about speed; it is also about resource management. The Royal Junior is meticulously designed to cut down on utility expenses:

• Power Efficiency: By utilizing a high-efficiency copper induction motor coupled directly to the grinding mechanism without complex, energy-sapping gearboxes, the machine maximizes mechanical torque transfer. It draws minimal amperage upon startup and maintains a stable, power-optimized profile throughout its operation, significantly lowering your monthly electricity overhead compared to running multiple traditional batch grinders simultaneously.

• Water Conservation: Traditional wet grinding requires a precise, often excessive amount of water to keep the heavy stones moving freely without seizing. The high-velocity shear of the Cone Model requires drastically less water to achieve fluid movement. This yields a highly concentrated, dense batter that can be custom-diluted later, giving chefs total control over batter consistency while reducing water waste.

5. Ergonomic Design, Operator Safety, and Structural Integrity

Industrial kitchen equipment can be intimidating and hazardous if poorly designed. The Royal Junior Cone Model prioritizes human-centric design, ensuring that operators of any skill level can interact with the machine safely, comfortably, and efficiently.

Ergonomics and Footprint Optimization

Space is premium real estate in any commercial kitchen. The Royal Junior features a vertical, streamlined profile that takes up a fraction of the counter space required by conventional stone grinders of comparable output. Its compact footprint ensures it can be tucked away into tight corners or moved easily when needed. The height of the feeding hopper is optimized to reduce shoulder strain on operators who are constantly lifting and loading heavy containers of soaked grains.

Comprehensive Safety Systems

Safety is built directly into the DNA of the Royal Junior's design. It includes multiple layers of mechanical and electrical protection to guard against operator error and electrical anomalies:

• Thermal Overload Protector (TOP): The motor is equipped with an integrated thermal sensor. If the machine is overloaded with dry, un-soaked ingredients or experiences an unexpected power surge, the TOP switch automatically cuts power to prevent damage to the windings.

• Waterproof Switch Gear: The control panel features industrial-grade, silicone-encapsulated ON/OFF switches. This prevents moisture, wet hands, or accidental splashes from causing short circuits or electrical shocks to the operator.

• Secure Locking Mechanism: The grinding chamber is sealed with heavy-duty, quick-release toggle clamps. These ensure that the chamber remains completely pressurized and locked during operation, yet allows for toolless entry when it is time to clean the unit.

• Stability Framework: The base is constructed with a low center of gravity and fitted with non-slip, industrial rubber feet that isolate vibration, preventing the machine from shifting or generating excessive noise during high-speed operation.

6. Maintenance, Cleaning Protocols, and Longevity Guidelines

In food service, hygiene is non-negotiable. One of the greatest pain points of traditional wet grinders is the grueling process of dismantling heavy stones and scrubbing deep, inaccessible crevices where old batter can stagnate and breed harmful bacteria. The Royal Junior Cone Model eliminates this bottleneck entirely with its revolutionary Easy-Clean Architecture.

The Clean-in-Place (CIP) Advantage

For minor transitions between batches or at short pauses during a shift, the Royal Junior can be cleaned without dismantling a single component.

• The Process: Simply keep the motor running and pour clean, warm water into the hopper. The high-speed rotation of the conical rotor instantly creates a powerful, turbulent vortex inside the chamber, scrubbing the abrasive faces of the stone elements and flushing out any residual batter through the discharge chute within seconds.

Deep Sanitation and Disassembly

At the end of an operational day, a thorough deep-clean is incredibly simple:

1. Release Quick-Toggle Clamps  2. Lift Off Outer Stator Jacket


4. Sanitize Chamber Walls       3. Expose & Wipe Conical Rotor

Because the structural parts are premium AISI 304 stainless steel, they can withstand aggressive commercial detergents and sanitizing agents without pitting, rusting, or tarnishing. The smooth, polished surfaces of the discharge chute and hopper ensure that food particles cannot bind to the metal, preventing biofilm formation and ensuring total compliance with strict food safety regulations.

Long-Term Maintenance and Durability Tips

To ensure that your Royal Junior operates flawlessly for decades, a simple maintenance regimen is recommended:

• Lubrication: The internal bearings are sealed for life, meaning you never have to worry about grease contaminating the food chamber. However, a light drop of food-grade silicone oil on the adjusting screws keeps the adjustments fluid and effortless.

• Stone Dressing: Over years of heavy commercial use, the micro-textures on the conical stones may smooth out. The stones can be easily re-dressed or replaced entirely without needing to discard the entire machine assembly, providing a sustainable, long-term return on your investment.

7. Versatile Culinary Applications and Commercial Value Proposition

The Royal Junior Cone Model Instant Wet Grinder is not a single-purpose appliance; it is a versatile culinary workstation that opens up extensive menu possibilities for commercial kitchens, food manufacturers, and high-end culinary establishments.

Diverse Culinary Applications

• South Indian Breakfast Batters: The primary application for many users is the lightning-fast preparation of idli, dosa, vada, and appam batters. The unique aeration created by the high-speed shearing action gives the batter an exceptional lightness, yielding incredibly soft idlis and perfectly crisp dosas.

• Nut Butters and Pastes: The immense torque and micro-clearance adjustment capabilities allow the machine to crush hard nuts into smooth, spreadable pastes. You can produce artisanal almond butter, peanut butter, cashew paste, and pistachio creams completely naturally, without adding emulsifiers or oils.

• Ethnic Spice Pastes and Curries: From Thai green curry pastes to complex Indian masala bases (such as ginger-garlic paste or onion-tomato reduction bases), the machine pulverizes fibrous herbs, lemongrass, ginger, and tough seed spices into uniform, silky smooth textures in a single pass.

• Confectionery and Chocolate Refining: The fine-tuning capabilities of the conical assembly make it an excellent entry-level pre-refiner for cacao nibs, helping small-scale bean-to-bar chocolate makers reduce initial particle size quickly before long-term conching.

Commercial Value Proposition and Return on Investment (ROI)

Investing in the Royal Junior Cone Model is a highly strategic business decision that pays dividends almost immediately:

1. Labor Cost Reduction: Traditional batch grinding requires staff to constantly monitor the machine, add water at intervals, tilt the heavy drum, scoop out batter, and wash heavy components. The Royal Junior requires minimal monitoringjust fill the hopper and collect the batter. This frees up kitchen staff for other critical prep work.

2. Space and Asset Consolidation: One Royal Junior Cone Model can easily replace two or three conventional 5-liter tilting grinders. This frees up invaluable kitchen real estate and drastically reduces the number of appliances your maintenance team needs to service.

3. Consistency of Product: In a multi-location restaurant chain or a bustling kitchen with shifting staff schedules, maintaining culinary consistency is a challenge. The adjustable locking mechanism of the Royal Junior ensures that no matter who operates the machine, the batter consistency, texture, and quality remain identical day after day.

The Royal Junior Cone Model Instant Wet Grinder is far more than a simple kitchen tool; it is an essential piece of industrial infrastructure designed to elevate operational efficiency, maximize product quality, and boost profitability for serious culinary professionals.
