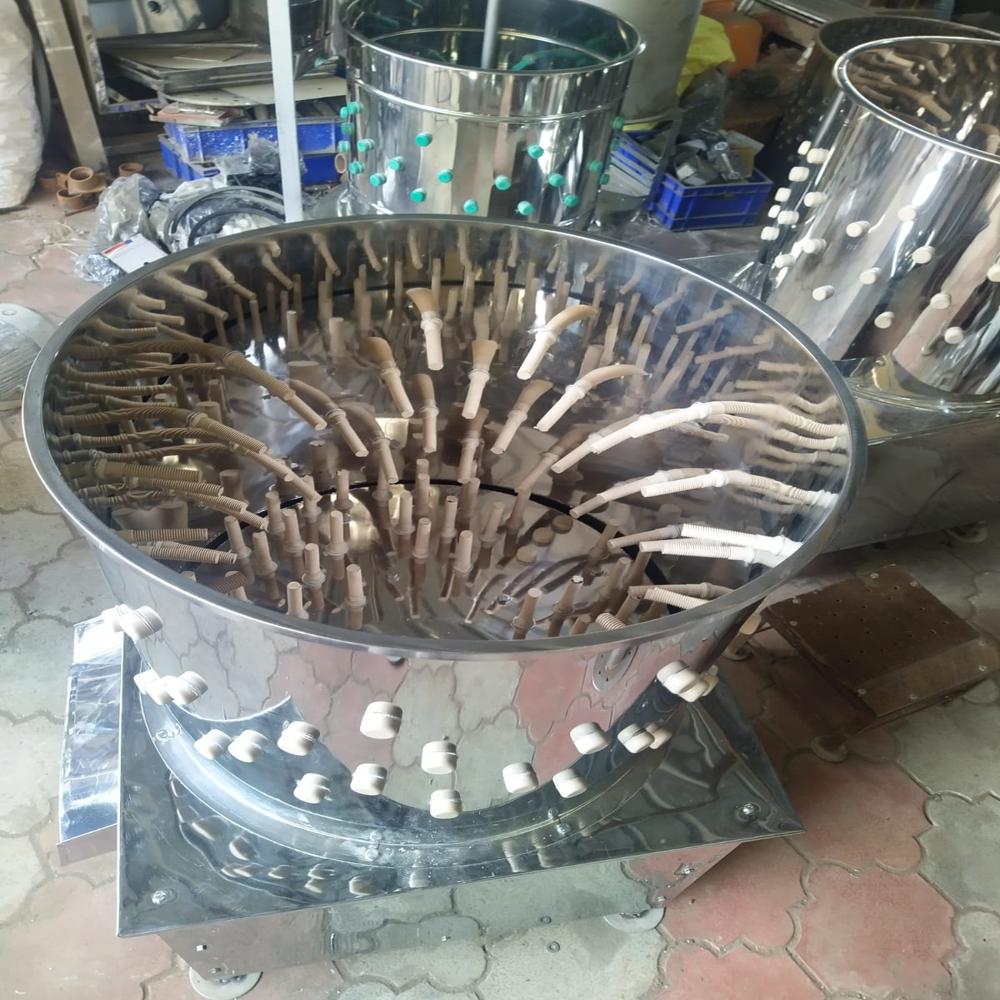

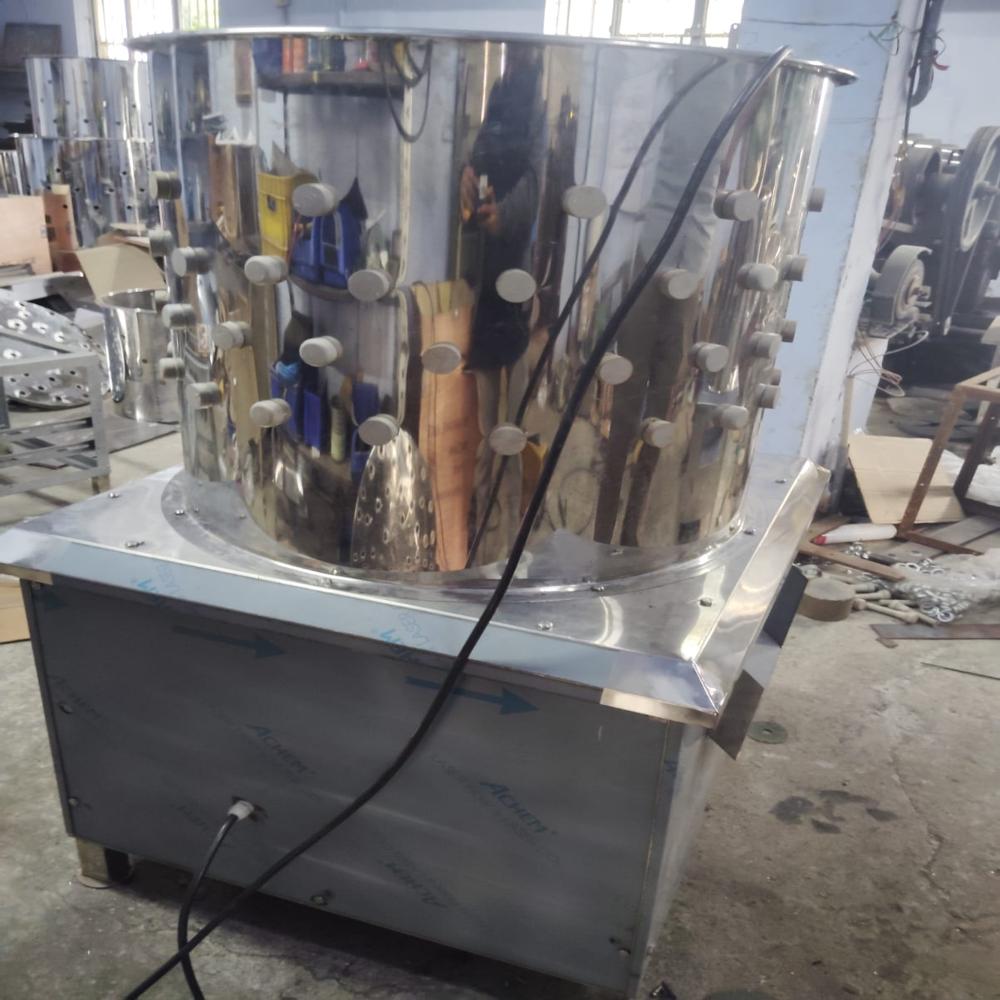

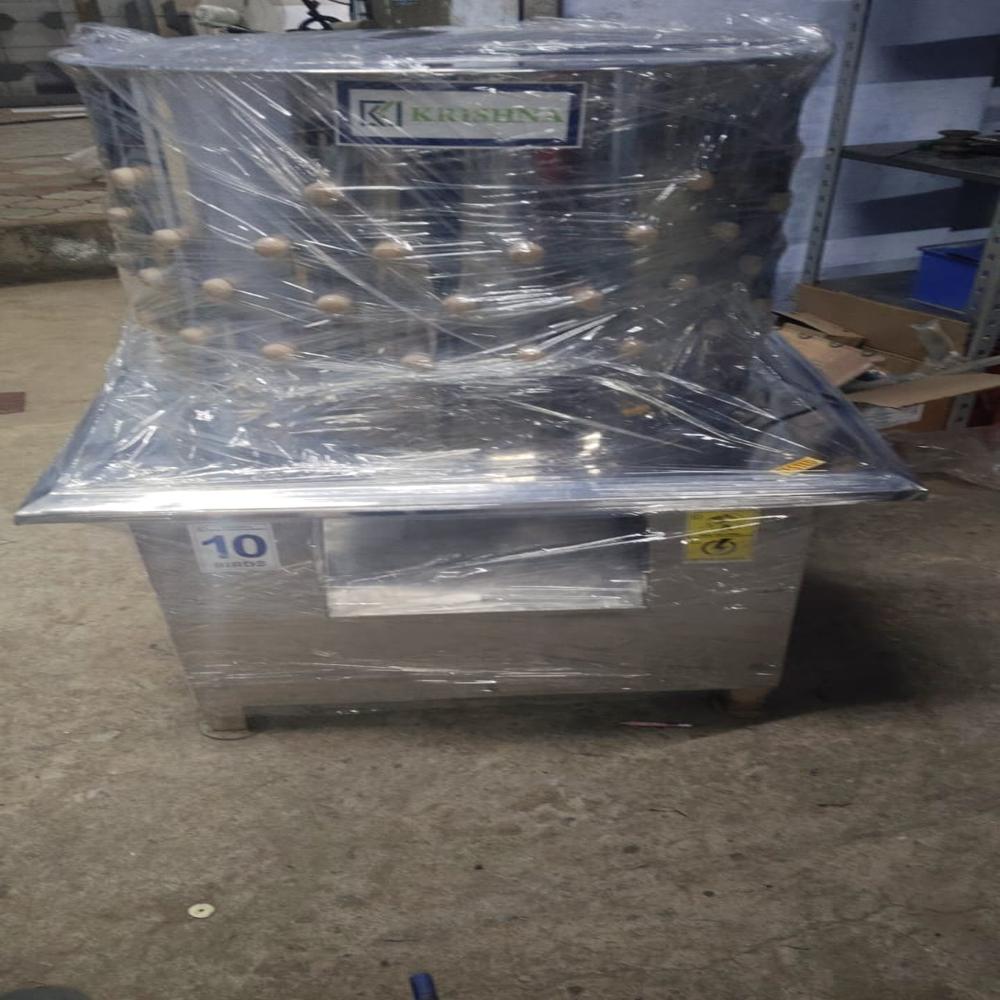

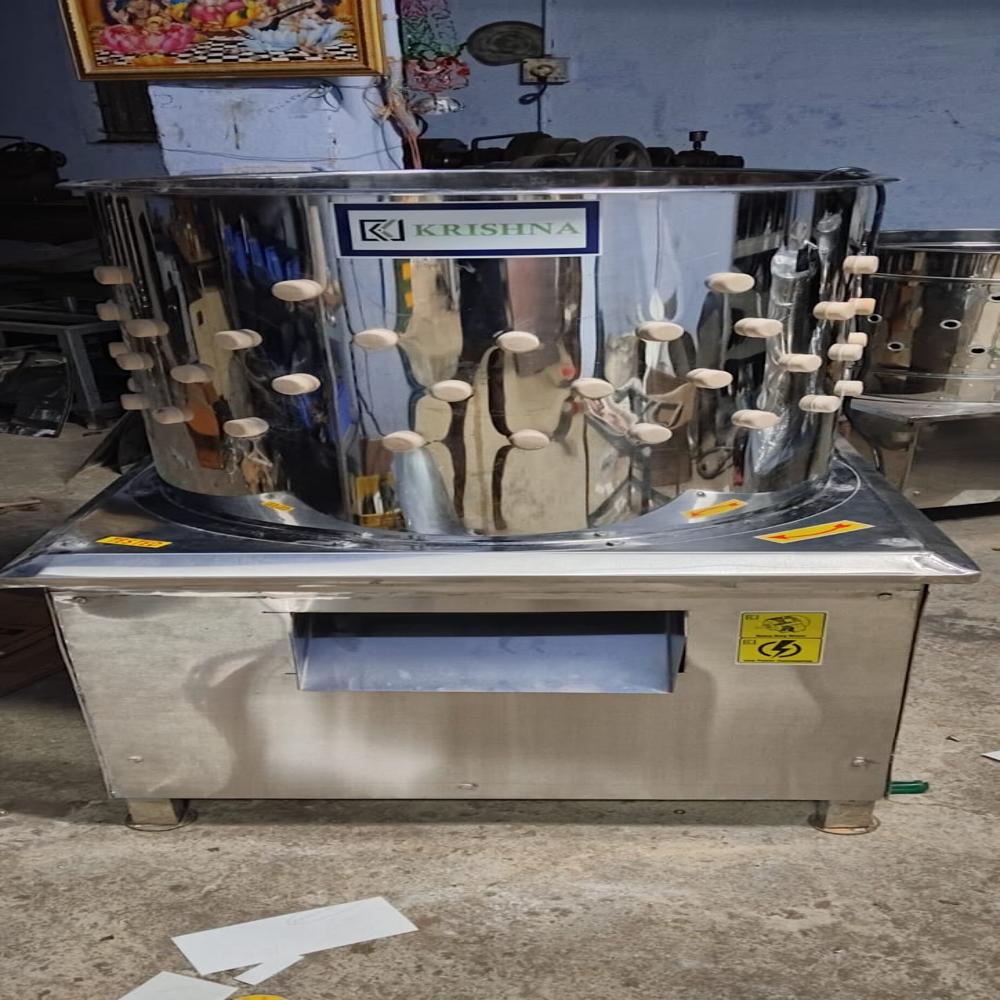

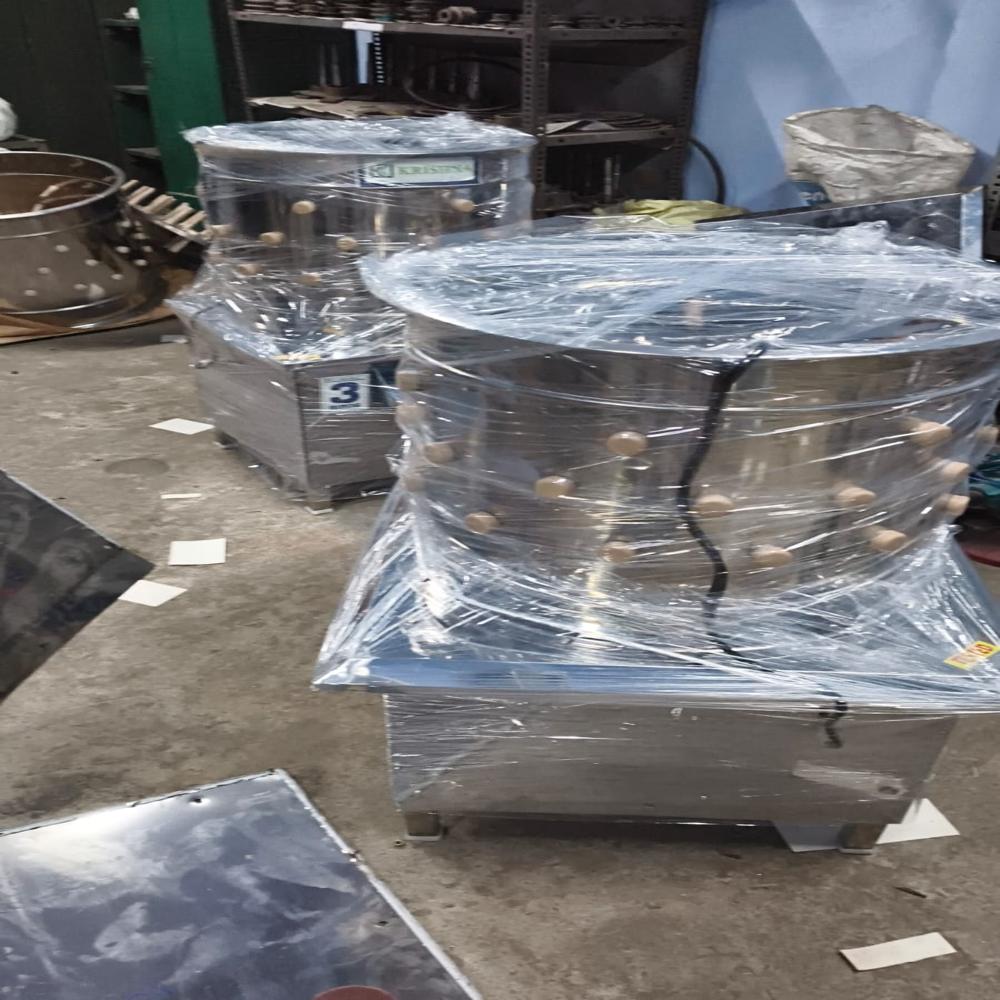

The 10-Bird Industrial Poultry Plucker

The 10-Bird Chicken Feather Cleaning Machine is a heavy-duty, centrifugal powerhouse engineered for professional poultry farms, high-capacity slaughterhouses, and commercial food processing centers. Unlike hobbyist models, this machine is designed for continuous duty cycles, capable of processing hundreds of birds per hour with surgical precision and zero manual intervention.

1. Technical Specifications

2. Comprehensive Feature Analysis

I. Ultra-Durability: TheStainless Steel Advantage

In a high-moisture environment involving organic waste and acidic cleaning agents, structural integrity is paramount.

• Anti-Microbial Surfaces: The non-porous nature of the steel prevents bacterial colonies (like Salmonella or E. coli) from nesting in scratches.

• Reinforced Base: The internal frame is cross-braced to handle the immense vibration of 10 rotating carcasses.

II. Precision-Engineered "Gentle-Touch" Fingers

A common failure in high-capacity machines is skin tearing. Our 10-bird model utilizes Variable Durometer Fingers:

• Base Fingers: Stiffer rubber at the bottom to provide the initial "lift" and rotation.

• Side-Wall Fingers: Softer, more flexible rubber to delicately wipe feathers from wings and necks without fracturing bones.

• Replacement System: Friction-fit design allows for individual finger replacement in seconds without dismantling the drum.

III. The Irrigation & Waste Management System

Processing 10 birds at once generates a massive volume of feathers.

• The Vortex Chute: A steeply angled exit ramp ensures that feathers are instantly flushed into a collection bin, preventing "feather-balling" which can slow down the drum.

• 360-Degree Spray Ring: An internal water manifold provides a constant curtain of water, keeping the carcasses lubricated and the fingers cool.

3. Operational Workflow for Maximum Efficiency

To achieve a 99% clean pluck on a 10-bird cycle, the operator should adhere to the following industrial protocol:

1. Stunning & Bleeding: Birds must be fully bled to ensure skin elasticity.

2. The Precision Scald: Use an industrial scalder set to $62{\circ}C$ ($143{\circ}F$). For 10 birds, a motorized dunker is recommended to ensure even heat penetration to the quill base.

3. Loading: Activate the plucker before loading. Drop all 10 birds into the drum simultaneously to maintain centrifugal balance.

4. The 25-Second Cycle: The machine will strip the feathers in roughly 2030 seconds.

5. Ejection: Open the automated discharge door (if equipped) or manually lift the birds out into a chilling tank.

4. Safety and Compliance Standards

• Emergency Stop: Large, mushroom-head E-stop button positioned for knee or hand operation.

• Waterproofing: All electrical components, including the capacitors and wiring, are sealed against high-pressure washdowns.

• GFCI Protection: Built-in ground fault circuit interrupters to protect operators in wet environments.

5. Maintenance & Longevity

To ensure the machine lasts 10+ years:

• Flush the underside of the spinning plate to remove trapped feather quills.

• Check the tension of the dual-drive belts.

• Grease the heavy-duty pillow block bearings to ensure smooth, whisper-quiet rotation.
